(Matlab) Adenine nucleotide translocator (ANT)
Description
The primary function of Adenine nucleotide translocator (ANT) is to catalyze ADP/ATP exchange across the inner membrane. Under respiring conditions, ATP4− generated by oxidative phosphorylation is exported to the cytosol for use in cellular activities and ADP3− is imported into the mitochondrial matrix for continuous ATP synthesis. Ant is therefore an ADP3−/ATP4− exchanger. The two reactions involved in the ANT are: 1. (cytoplasm) Creatine Kinase (EC 2.7.3.2) Phosphocreatine + ADP + H+ <-> Creatine + ATP 2. (Mito matrix) ATP Hydrolysis (EC 3.6.1.32) ATP + H2O <-> ADP + Pi + H+ Hydrolysis of ATP. Model generated from The Biochemical Simulation Environment (BISEN).

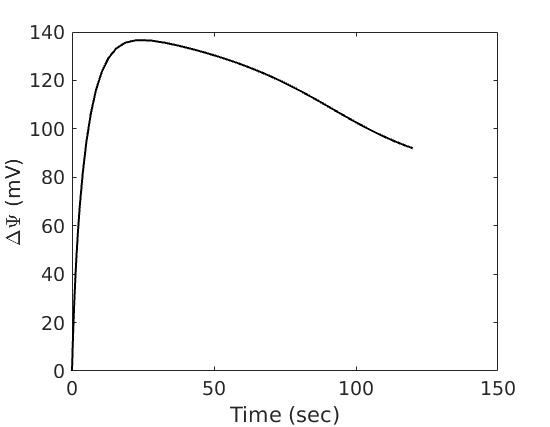

Figure 1: Potential energy across mito membrane.

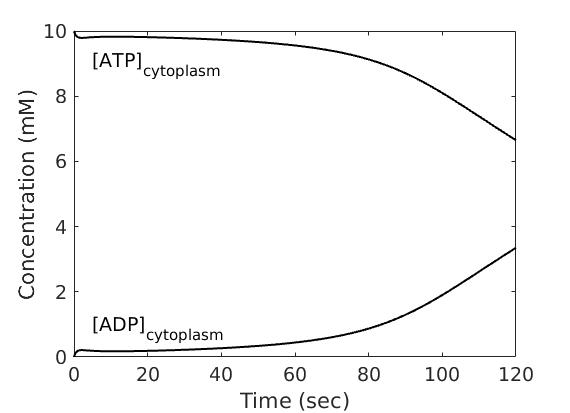

Figure 2: Progress curves of ATP and ADP in cytoplasm.

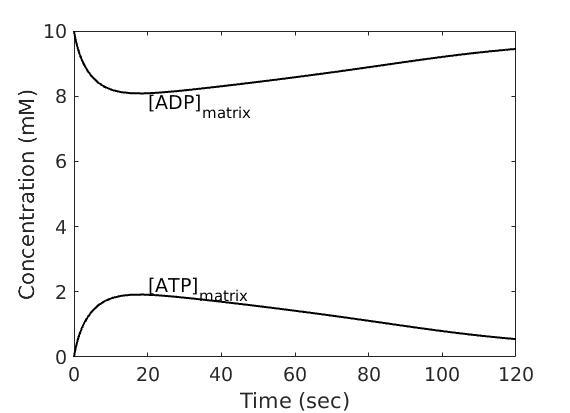

Figure 3: Progress curves of ATP and ADP in mito membrane matrix.
Equations
The equations for this model may be viewed opening the Matlab model below.
Download Matlab model files
We welcome comments and feedback for this model. Please use the button below to send comments:
- J. Vanlier, F. Wu, F. Qi, K. C. Vinnakota, Y. Han, R. K. Dash, F. Yang, D. A. Beard; BISEN: Biochemical Simulation Environment, Bioinformatics, Volume 25, Issue 6, 15 March 2009, Pages 836–837, https://doi.org/10.1093/bioinformatics/btp069
