Four segment (larynx, trachea, bronchi, alveoli) pressure-flow model represents the respiratory system and it is driven by pleural pressure.
Description
This model represents the airway with four segments: the larynx, trachea, bronchi, and alveoli. The pressure is applied to the compliances, Com2, Com3, Com4, of the three segments that are within the chest cavity.
Figure Legend: p: Pressure, R: Resistance, F: Flow, Com: Compliance, V: Volume

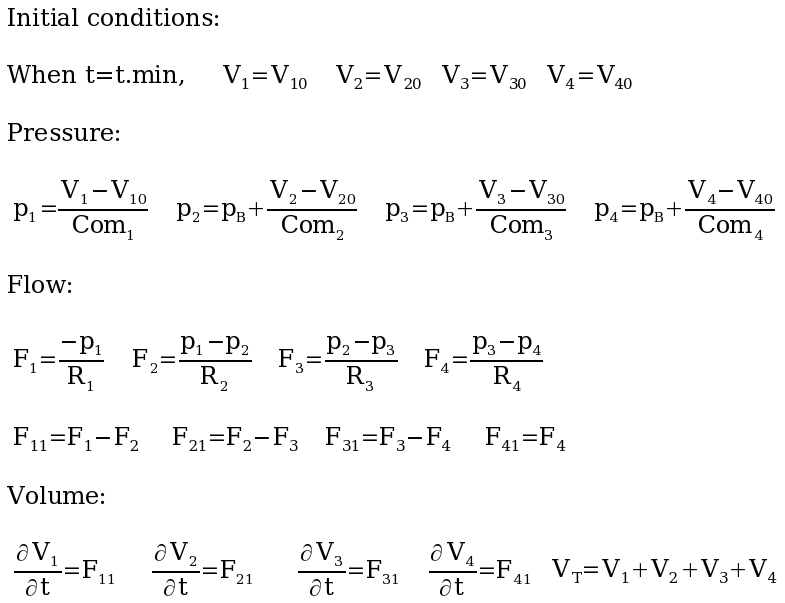

Equations
- Download JSim model MML code (text):
- Download translated SBML version of model (if available):
We welcome comments and feedback for this model. Please use the button below to send comments:
Rideout V. C., Mathematical and Computer Modeling of Physiological Systems, Prentice Hall, 1991, p137-143
