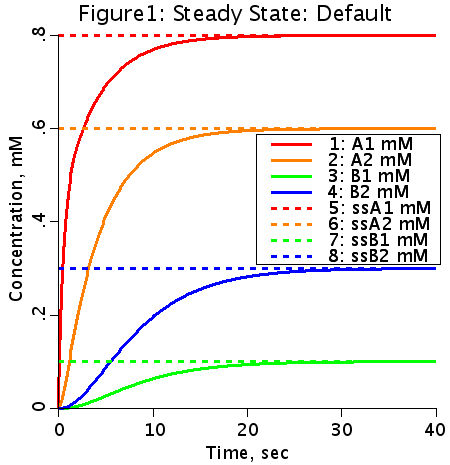

A two compartmental model with flow, exchange, reaction and decay for two species, A and B.
Further reading: Understanding Compartmental Modeling
Description
This is a tutorial model for testing what you have learned with the four models, CompDecayTutorial, CompFlowTutorial, CompReactionTutorial, and CompExchangeReaction. It is recommended that you write the complete set of equations identifying the sources and sinks, before you look at the solution.
Equations
No Equations are displayed.
The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.
