Models two compartments, fluid and air, for a soluble gas passively exchanging between the volumes, V1 liquid, V2 air, with buffering site in V1, forming a closed system. Assumes constant volumes, dry air. Simple model of alveolar-capillary gas exchange.
Description
Simple two compartment model of gas exchange between fluid and gas compartments with buffering of gas in water compartment. Emphasis is on mass exchange as the mass flux of gas across a phase boundary can be confusing. For this model the compartment volumes and temperature are held constant and the system is closed so that the total mass in the system is constant. Depending on the overall rate constants for the buffering reaction, the total CO2 in the system changes but the total amount of CO2 plus the buffering substrates still remains constant. To check that the ODE for CO2 in water compartment reduces to the analytical expression for pCO2w, just set the forward buffer reaction constant, kp1, to zero.

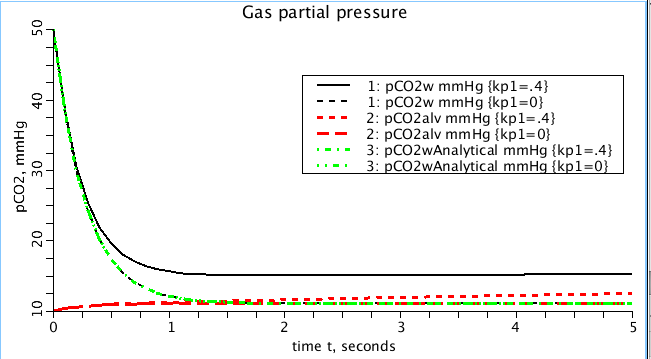

Figure: Partial pressure in the two compartments as a function of time with buffering on (kp1 = 0.4 sec^-1) and off. pCO2w (black) is the partial pressure, mmHg, in the water compartment and pCO2alv (red) is the partial pressure in the air/gas compartment. Green line is the analytical solution for pCO2w when buffering is off. Note that when buffering is on, the partial pressure increases in the water compartment and it takes much longer (>200 sec) for the partial pressures between the two compartment to equilibrate. The buffering increases the availablity of CO2 to the system.
