Airflow from atmosphere to Bronchi to Alveoli modeled with 2 compartments.
Description

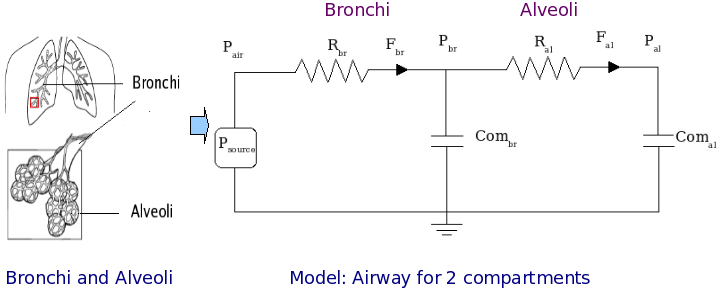

This model represents a simple 2-compartmental respiratory system, one bronchi compartment and one alveoli compartment. This model is driven by external pressure (Psource)as with positive pressure ventilation. There is no exchange between alveoli and blood. The fluid (air) is assumed incompressible. Volumes flow forward and back through air, bronchi (Vbr), and alveoli (Valv).
The transport of material in the flow is handled for positive and negative flow by changing the equations using switches. We set switches (Xb and Xa) in accord with flow direction. Flow from air to bronchi or from bronchi to alveoli is positive flow (Xb=1, Xa=1). Flow from alveoli to bronchi or from bronchi to air is negative flow (Xb=0, Xa=0).
Figure Legend:
P: Pressure, R: Resistance, F: Flow, Com: Compliance, V: Volume

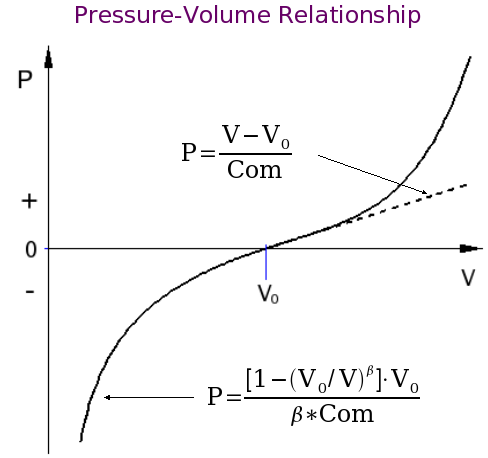

Equations
- Download JSim model MML code (text):
- Download translated SBML version of model (if available):
We welcome comments and feedback for this model. Please use the button below to send comments:
K. R. Lutchen and G. M. Saidel, Estimation of mechanical parameters in multicompartment models applied to normal and obstructed lungs during tidal breathing, IEEE Trans. Biomed. Eng., vol. BME-33, no. 9, pp. 878-887, Sept. 1986.
Please cite https://www.imagwiki.nibib.nih.gov/physiome in any publication for which this software is used and send one reprint to the address given below:
The National Simulation Resource, Director J. B. Bassingthwaighte, Department of Bioengineering, University of Washington, Seattle WA 98195-5061.
