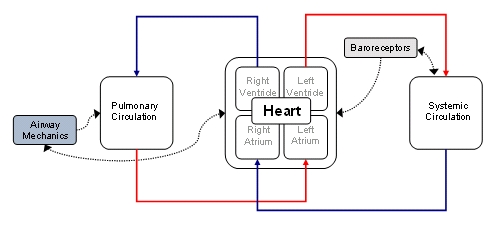

A closed loop cardiopulmonary model composed of a four-chamber varying-elastance heart, a pericardium, a systemic circulation, a pulmonary circulation, a coronary circulation, airways mechanics, and baroreceptors.
Description
This is a closed loop cardiopulmonary system composed of a four-chamber varying-elastance heart, a pericardium, a systemic circulation, a coronary circulation, a pulmonary circulation, baroreceptors, and airway mechanics. The model simulates physiological features such as the arterial blood pressure waveform, end-diastolic left ventricular volume, coronary capillary flow, and pleural pressure. This model is a reduced form of the Highly-integrated_human_with_interventions model. The code for simulation of interventions and injuries (aka Physiological Changes), peripheral chemoreceptors, blood gas handling, and gas exchange has been removed from the parent model to create the present system. The JSim project file allows the user to simulate certain interventions by changing model parameters in the “Inputs” page. For example, the parameter for pulmonary valve resistance (Rpuv) can be increased to simulate pulmonary valve stenosis.
Equations
The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.
- Download JSim model MML code (text):
- Download translated SBML version of model (if available):
- No SBML translation currently available.
- Information on SBML conversion in JSim
We welcome comments and feedback for this model. Please use the button below to send comments:
Athanasiades A, Ghorbel F, Clark JW, Niranjan SC, Olansen J, Zwischenberger JB, Bidani A. Energy analysis of a nonlinear model of the normal human lung. Journal of Biological Systems. 8(2): 115-139, 2000. Brandenburg, Robert O. Cardiology: fundamentals and practice. Yearbook medical publishers, 1987. p. 49. Chung DC, Niranjan SC, Clark Jr. JW, Bidani A, Johnston WE, Zwischenberger JB, Traber DL. A dynamic model of ventricular interaction and pericardial influence. Am J Phsiol Heart Circ Physiol. 272: H2942-H2962, 1997. Golden JF, Clark JW, Stevens PM. Mathematical Modeling of Pulmonary Airway Dynamics. IEEE Transactions on Biomedical Engineering. 20(6): 397-404, 1973. Heldt T, Shim EB, Kamm RD, Mark RG. Computational modeling of cardiovascular response to orthostatic stress. Journal of Applied Physiology. 92: 1239-1254, 2002. Kezdi P, and Geller E. Transfer characteristics of the carotid sinus pressure control system. In: Baroreceptors and Hypertension, Kezdi, P. (ed.) Pergamon, Dayton, OH, 1967, pp. 31-40. Liu CH, Niranjan SC, Clark JW, San KY, Zwischenberger JB, Bidani A. Airway mechanics, gas exchange, and blood flow in a nonlinear model of the normal human lung. Journal of Applied Physiology. 84(4): 1447-1469. Lu K, Clark JW, Ghorbel FH, Ware DL, Bidani A. A human cardiopulmonary system model applied to the analysis of the Valsalva maneuver. Am J Physiol Heart Circ Physiol. 281: H2661-H2679, 2001. Rideout VC. Mathematical computer modeling of physiological systems. Englewood Cliffs, NJ: Prentice Hall, 1991, 261 pp. Sun Y, Beshara M, Lucariello RJ, Chiaramida SA. A comprehensive model for right-left heart interaction under the influence of pericardium and baroreflex. Am J Physiol Heart Circ Physiol. 272: H1499-H1515, 1997. Zinemanas D, Beyar R, Sideman S. Relating mechanics, blood flow and mass transport in the cardiac muscle. Int. J. Heat Mass Transfer. 37(suppl. 1) 191-205, 1994.
