Modified Logistic Map shows the fractal nature of the Logistic equation when smaller and smaller ranges of the "R" parameter are used.

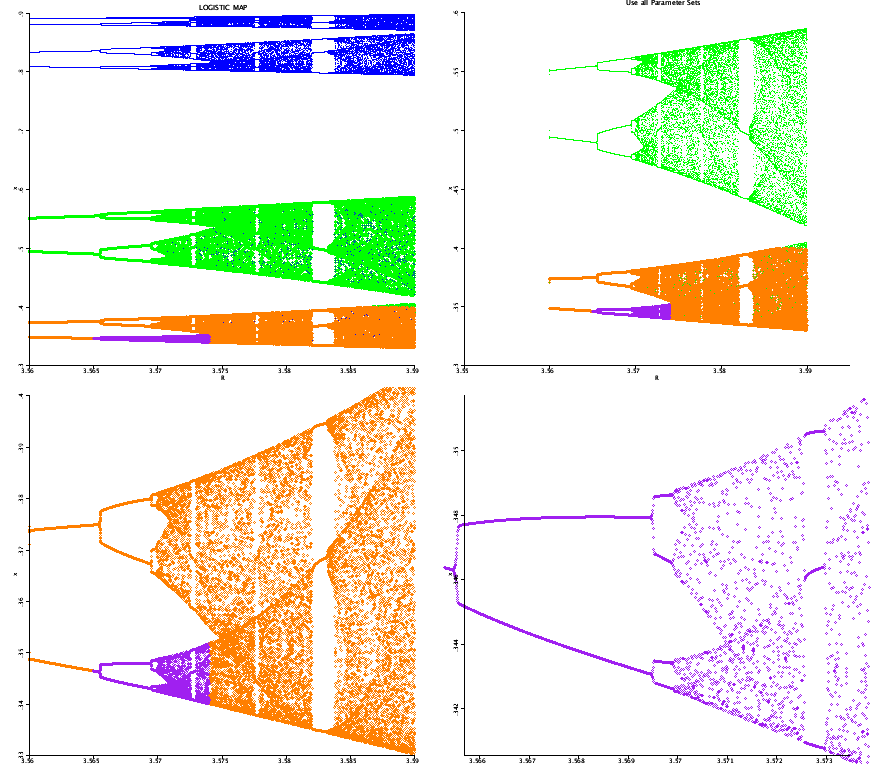

Figure 1 illustrates the fractal nature of the Logistic Equation by showing the same area at different magnifications.
Description
The sequence given by x(n+1) = R(n)*x(n)*( 1-x(n) ). where R(n) is given by R(n) = Rstart+(Rend-Rstart)*n/NMAX, where 0<=n<=NMAX. can be used to generate the Logistic Map. The logistic map is a fractal because if any part of it is expanded, it reveals a similar structure. The logistic map shows bifurcating behavior. Small changes in r can change the set of x values from a finite number to an infinite number.
Equations
Iterative equation for Logistic Map
The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.
- Download JSim model MML code (text):
- Download translated SBML version of model (if available):
We welcome comments and feedback for this model. Please use the button below to send comments:
Bassingthwaighte JB, Liebovitch LS, and West BJ. Fractal Physiology. New York, London: Oxford University Press, 1994, 364 pp.
