Models a tissue cylinder consisting of two regions: plasma, and interstitial fluid. Contains nested plots.
Further reading: Distributed Blood Tissue Exchange Models Explained
Description

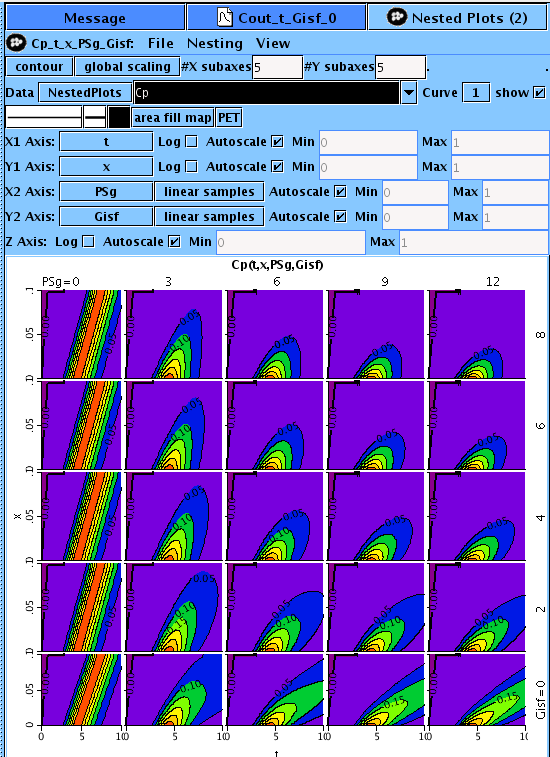

This program is a version of BTEX20, the two region partial differential model. Two of the model parameters, PSg (exchange between plasma and isf) and Gisf (consumption in the isf) have been modified to be realDomains instead. This necessitates making Cp(t,x) into Cp(t,x,PSg,Gisf), Cisf(t,x) into Cisf(t,x,PSg,Gisf) and Cout(t) into Cout(t,PSg,Gisf). The details of making nested plots can be found at https://www.imagwiki.nibib.nih.gov/physiome/jsim/docs/UserNested The "Nesting" menu is on the second line of the nesting plot page, i.e. Message | Plotname | ... PlotName: | File | Nesting | View
Equations
Differential Equations
Left Boundary Conditions
Right Boundary Conditions
,
,
.
Initial Conditions
,
or
,
The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.
