Noble's 1998 improved guinea-pig ventricular cell model. It incorporates a diadic space, rapid and slow potassium currents and length and tension-dependent processes.
Description

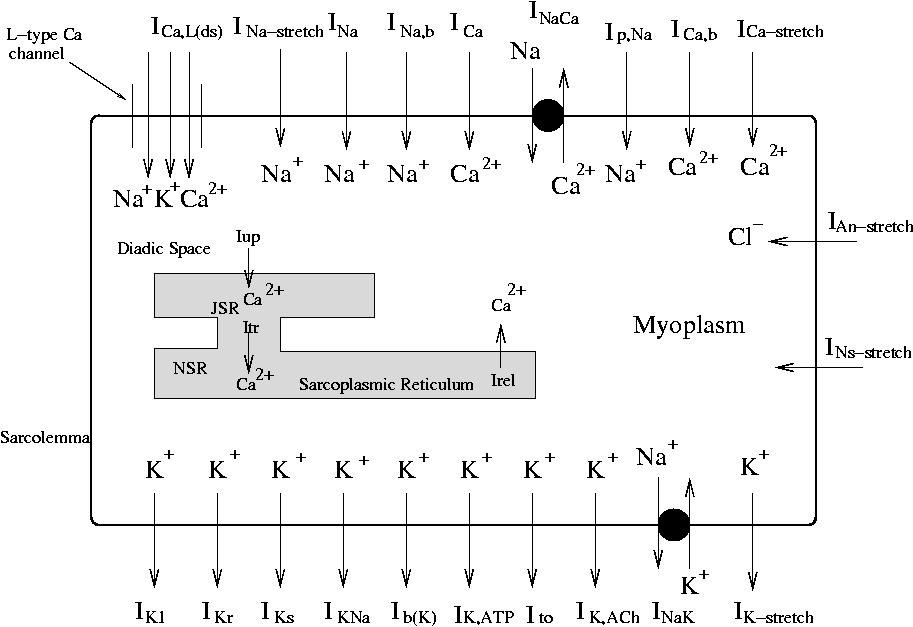

In their 1998 paper, Denis Noble, Anthony Varghese, Peter Kohl and Penny Noble extended the guinea-pig ventricular cell model (originally developed in 1991 by Noble et al) to include accumulation and depletion of calcium in a diadic space between the sarcolemma and the sarcoplasmic reticulum, where the majority of calcium-induced calcium release is triggered. The model also includes rapid (i_Kr) and slow (i_Ks) components of the delayed rectifier current, and length- and tension-dependent changes in mechanical and electrophysiological processes have been incorporated. Drug-receptor interactions have also started to be modeled using the sodium channel as an example. The drugs used have the effect of blocking the inactivation h-gate of the fast sodium channel. (Description copied from the CellML website).
This model was downloaded from the CellML repository then translated by Erik Butterworth (CellML to JSim MML) on 28Nov05. We have added code at the top to define time, t and t. min and t. max in order to run the translation. It is otherwise exactly as derived from CellML website.
Equations
The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.
- Download JSim model MML code (text):
- Download translated SBML version of model (if available):
We welcome comments and feedback for this model. Please use the button below to send comments:
Noble, D., Varghese, A., Kohl, P. & Noble, P: (1998), Improved guinea-pig ventricular cell model incorporating a diadic space, IKr and IKs, and length- and tension-dependent processes, Canadian Journal of Cardiology, 14, 123–134.
Please cite https://www.imagwiki.nibib.nih.gov/physiome in any publication for which this software is used and send one reprint to the address given below:
The National Simulation Resource, Director J. B. Bassingthwaighte, Department of Bioengineering, University of Washington, Seattle WA 98195-5061.
