This is a one compartment lung mechanic model with O2,CO2,H2O,N2 pressure changes.
Description

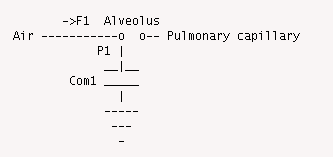

ONE COMPARTMENT LUNG MODEL - MECHANICS & O2, CO2, H2O, and N2 PRESSURE CHANGES A model of a single compartment compliant lung. Ventilation is driven by positive pressure oscillatory pressure source (Psource) that produces bi-directional airflow. Oxygen (O2), CO2, Water vapor, and N2 change with an infinite sink (source) of these gases which is assumed to be located within the tissue. Mathematically, this mechanics model analogous to a single open loop resistor-capacitor electric circuit.
Equations
The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.
- Download JSim model MML code (text):
- Download translated SBML version of model (if available):
We welcome comments and feedback for this model. Please use the button below to send comments:
M.G. Levitzky, Lange Physiology Series: Pulmonary Physiology, 6th edition. McGraw Hill, 2003.
