Model the interactions of proteins cdc2 and cyclin which form a heterodimer (maturation promoting factor) that controls the major events of the cell cycle. Tyson 1991 model imported from Biomodels (www.ebi.ac.uk).
Description
(Abstract) The proteins cdc2 and cyclin form a heterodimer (maturation promoting factor) that controls the major events of the cell cycle. A mathematical model for the interactions of cdc2 and cyclin is constructed. Simulation and analysis of the model show that the control system can operate in three modes: as a steady state with high maturation promoting factor activity, as a spontaneous oscillator, or as an excitable switch. We associate the steady state with metaphase arrest in unfertilized eggs, the spontaneous oscillations with rapid division cycles in early embryos, and the excitable switch with growth-controlled division cycles typical of nonembryonic cells. Modeled as a set of six differential equations with the rate constant describing breakdown of the active cdc2-cyclin complex set to either constant value, or periodic (sine or exponential) with a period set to mass doubling time (cell division cycle).

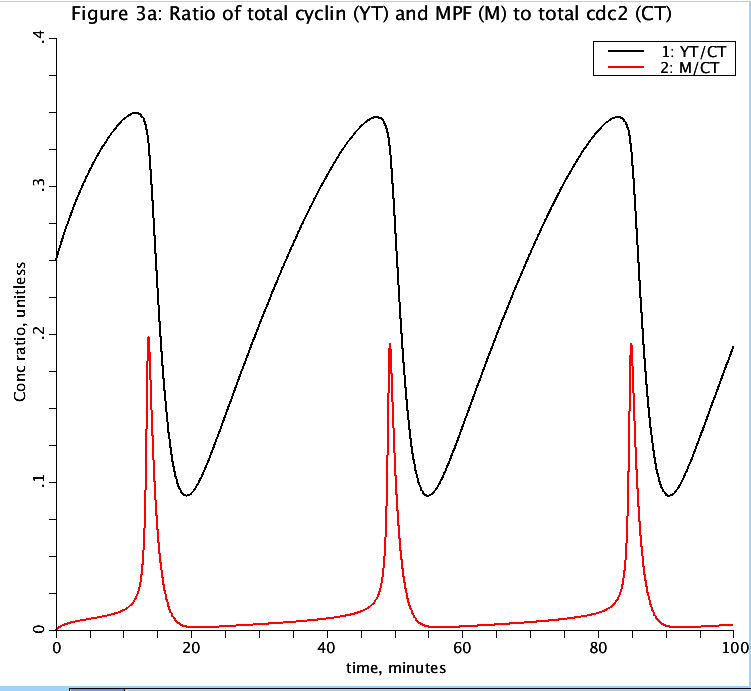

Figure: Dynamical behavior of the cdc2-cyclin model. Limit cycle oscillations for k4 = 180 min-1, k6 = 1 min^-1.
YT is total cyclin, CT is total cdc2, and M is active MPF.
Equations
The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.
- Download JSim model MML code (text):
- Download translated SBML version of model (if available):
We welcome comments and feedback for this model. Please use the button below to send comments:
Tyson JJ. Modeling the cell division cycle: cdc2 and cyclin interactions, 1991, www.ncbi.nlm.nih.gov/pubmed/1831270" www.ncbi.nlm.nih.gov/pubmed/20587024" ,Li C, Donizelli M, Rodriguez N, Dharuri H, Endler L, Chelliah V, Li L, He E, Henry A, Stefan MI, Snoep JL, Hucka M, Le Novre N, Laibe C (2010), BioModels Database: An enhanced, curated and annotated resource for published quantitative kinetic models. BMC Syst Biol., 4:92.
