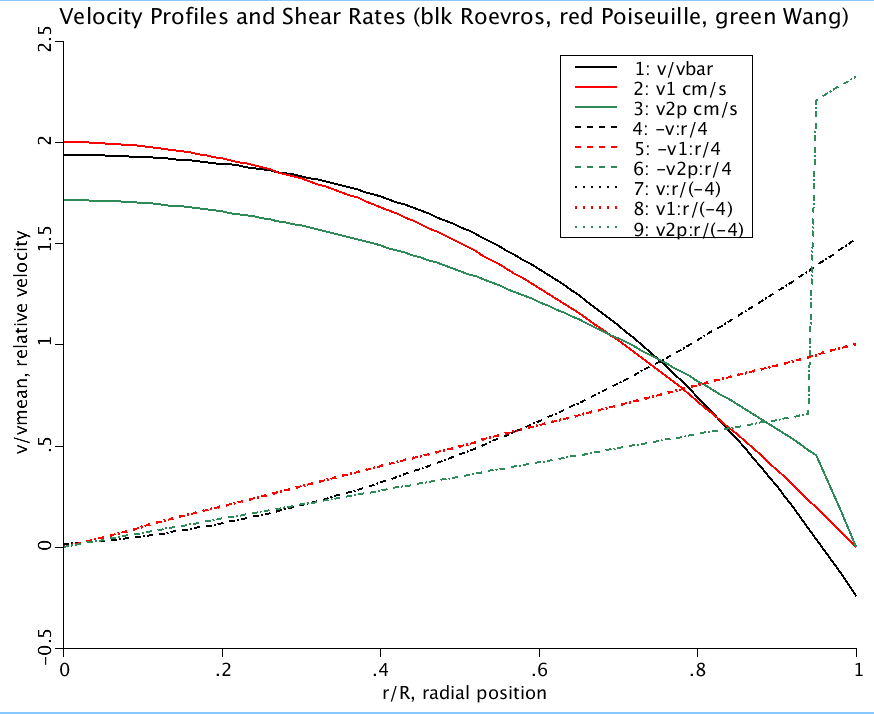

Veloicty profiles in straight cylinders. Poiseuille Flow is parabolic (Model 2). Slip at wall is Roevros (Model 1) Two phase flow model (Wang Model 3) has lower viscosity at wall.
Description
Adjustable intravascular velocity profiles in straight tubes.
A model allowing flattening of the velocity profile,
parabolic at its maximum, and allowing slip at the
wall. Follows various equations:
1. Roevros 1974 (Roevros JMJG Analog processing of
CW-Doppler flowmeter signals... In "Cardiovascular
applications of ultrasound" Ed. by RS Reneman,
Amsterdam-London, North-Holland Publ Co. 1974 pp43-54
v(r) = vmax (1- [ar/R + b]^K), for a>0,
a allows for a non-zero interfcept at the wall
b gives shift away from vessel center
K=2 for parabolic flow, and K>2 for flattening
vmean = mean veloc = flow/(PI*R^2)
2. Poiseuille Flow v(r) = 2.0*vmean*(1-(r/R)^2)
3. 2-phase flow in straight tube. Derived from curved
tube model of Wang and JBB 2003, in the Appendix.
Equations
